Maestrale

Spotlight on
the protagonist.
Hi-tech furling
shade sail.

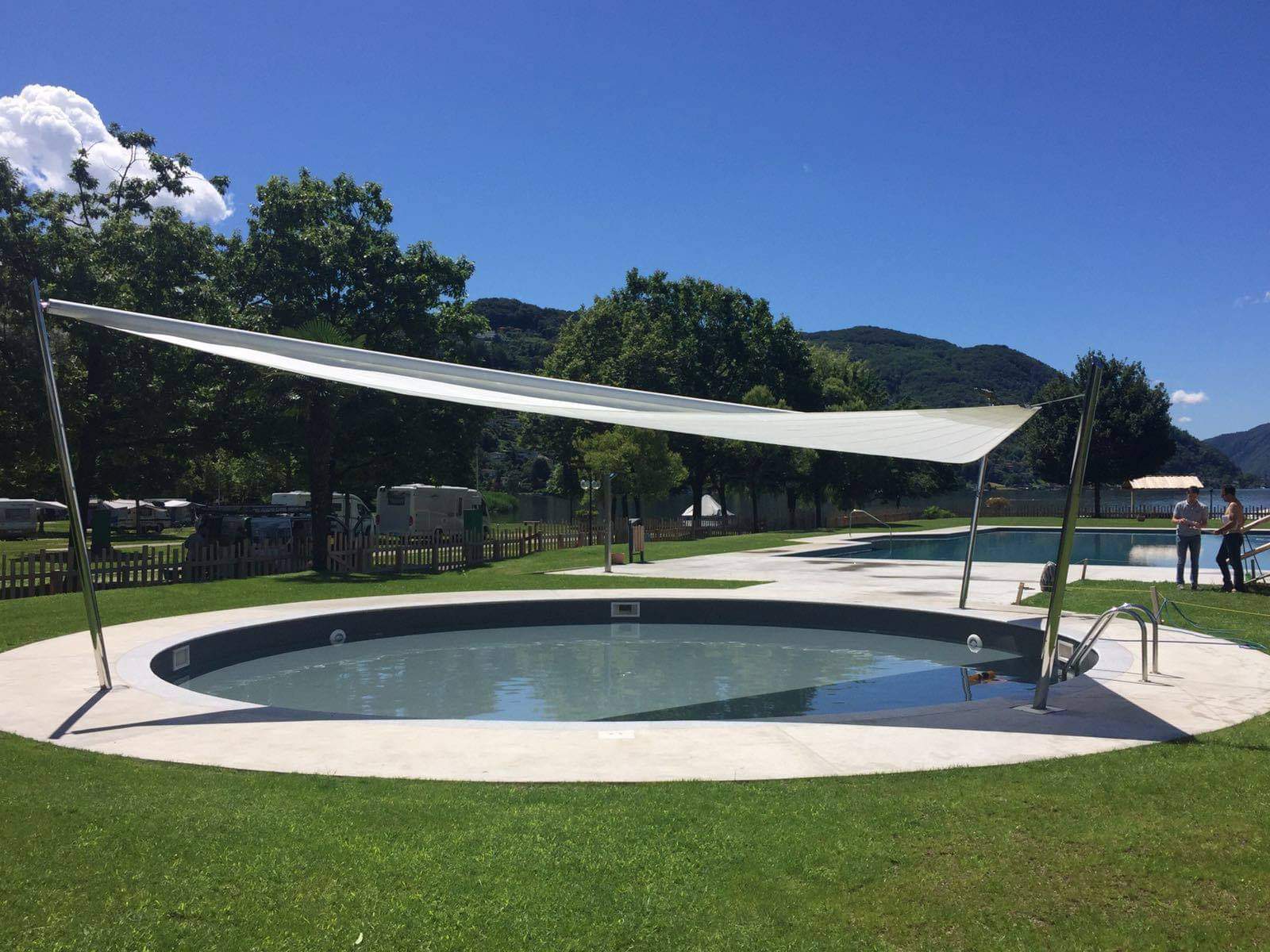

Shade sail with a self-supporting structure consisting of three or four stainless steel poles. The triangular sails roll up onto an anodized aluminium profile.
The 3-pole version is produced in 38 models with side lengths that vary from 3 x 3 x 3 m up to a maximum of 12 x 9.5 x 9.5 m. The 4-pole version is produced in 113 models with side lengths that vary from 4 x 3 m up to a maximum of 8 x 8 m with possible variations of 50 cm per side. The stainless poles are anchored by means of stainless steel support bases.
Structures can have a triangular, square, rectangular or diamond shape. The height of the poles is determined by SAILSHADOW during design; no modifications are allowed as these would imply variations in the length of both the structure and the shade sail.
Structure and shade sail are delivered at the same time.

Technical specifications

Nautical technology

Resistant to the elements

Anemometer

Customizable

Motorized movement

Low maintenance

Resistant to salt and sea air

Manual movement

CE marking

Poles and accessories made of SAE 304 stainless steel with MIRROR POLISH FINISH (nautical grade finish), finally treated with electropolishing for an excellent resistance to corrosion and a prolonged exposure to the elements.

SAE 304 stainless steel

5 Years warranty

Colours and Fabrics

DACRON
Non fireproof. Woven polyester fabric.

White

UV protection

2 Years warranty

TEMPOTEST STARLIGHT - RESIN-COATED
Non fireproof. Mass-dyed PET fabric.

White

Beige

Anthracite

Burgundy

UV protection

2 Years warranty

TEMPOTEST STARLIGHT “FR” - NON RESIN-COATED
Fireproof. Mass-dyed PET fabric.

White

Beige

Anthracite

Burgundy

Nero

UV protection

2 Years warranty

The colours shown are merely indicative and may vary slightly due to the printing process.

Other characteristics

Models, dimensions and weight are available within the Reserved Area. If you do not have access to this area, please request them by filling out the form below.

Optional

Fusolo ONE
HIGH-EFFICIENCY IP65 OUTDOOR LED LAMP
Elegant, water and dust proof lamp body made of anodized aluminium alloy; minimum maintenance. Ideal for outdoor lighting where a low illuminance is required.

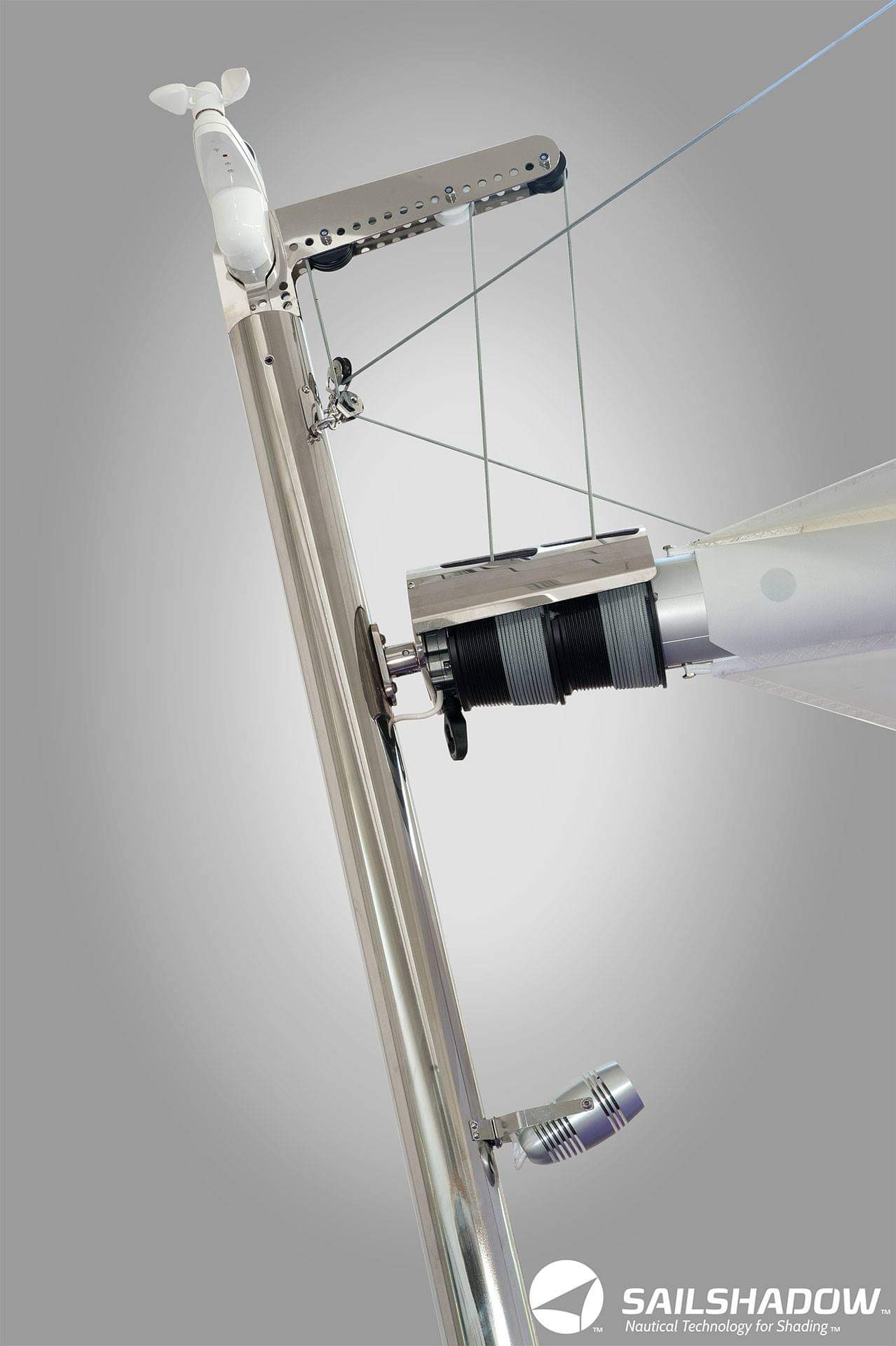

Control pole for Maestrale and Scirocco; the motorized version is fitted with an anemometer, which automatically rolls up the sail in case of strong winds.

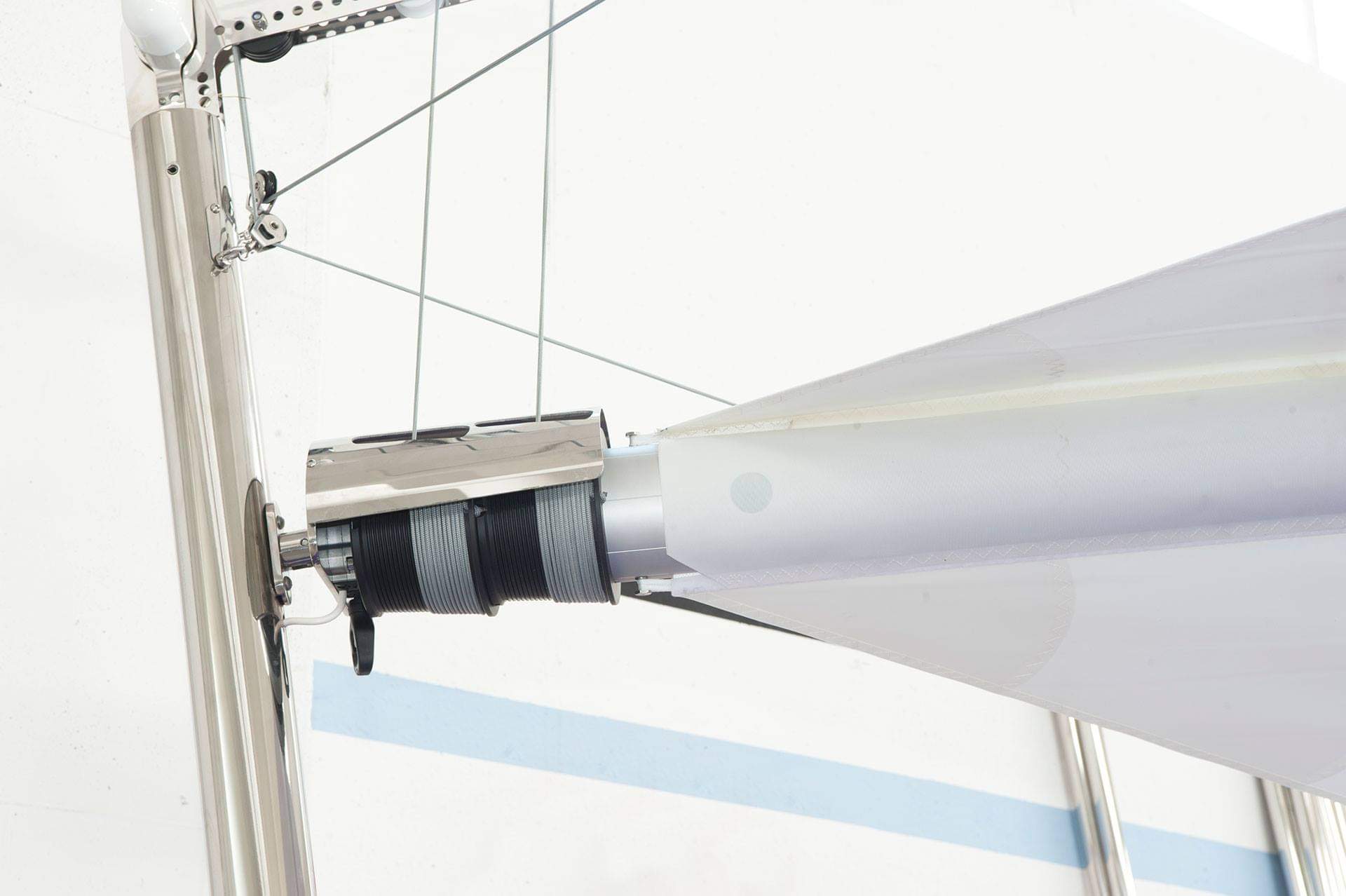

The motor is housed inside the aluminium furling profile and is operated via remote control or manually, in the event of a blackout. A manually-operated version is also available.
To tension the sail of the MAESTRALE and SCIROCCO models, it is enough to act on the tackle (complete with line and blocks just like the one of a sailboat) which can be reached through the opening (porthole) on the pole and which puts tension on the spring. The position of the spring inside the pole offers advantages in terms of safety as in case of strong wind, it enables the sail to lift or lower to minimise the load on the structure.

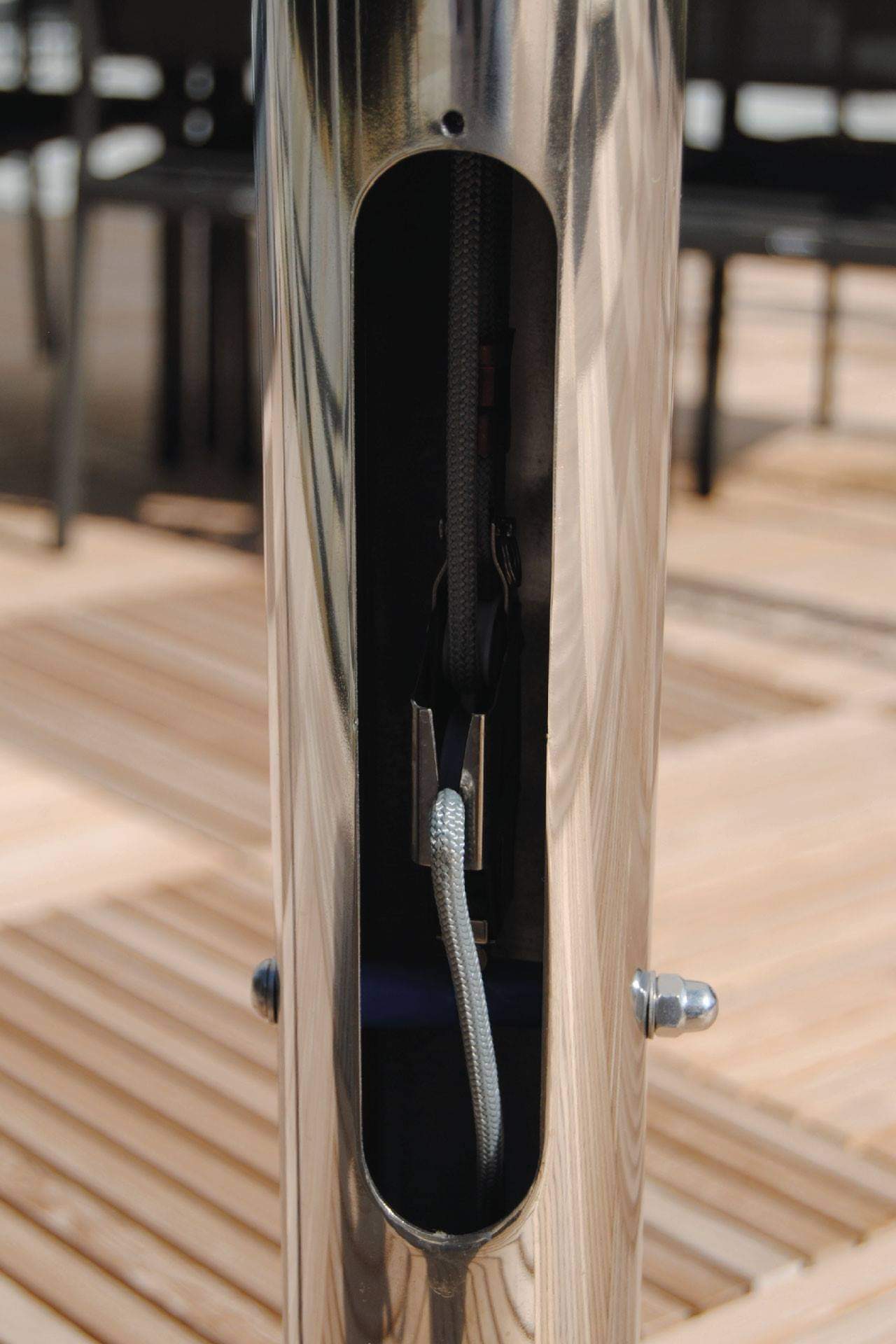

Pole opening (porthole) used to properly tension the shade sail and for electrical connection.
